- Products -

PET Series

Core?Material?Expert?--?always?beyond?excellence

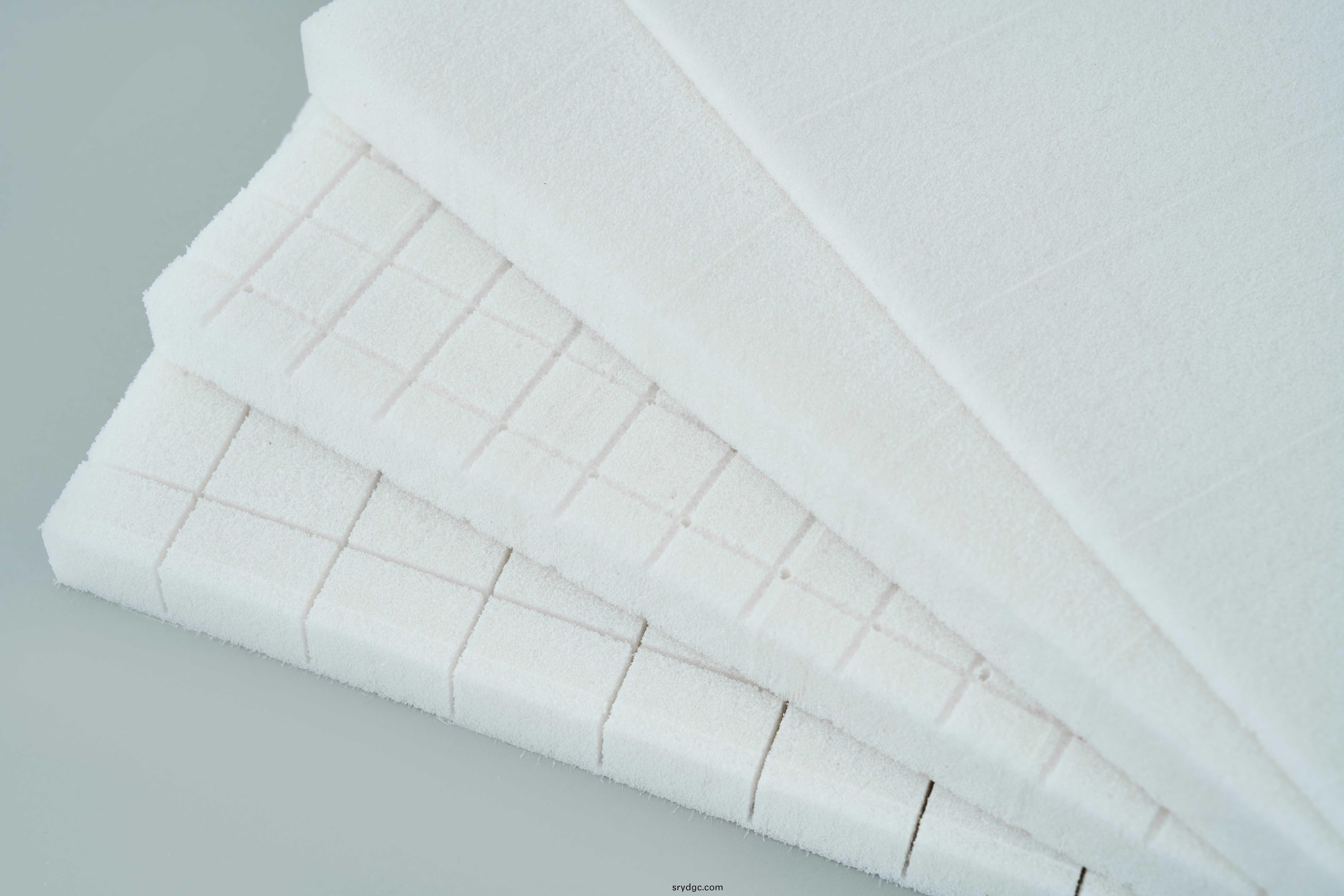

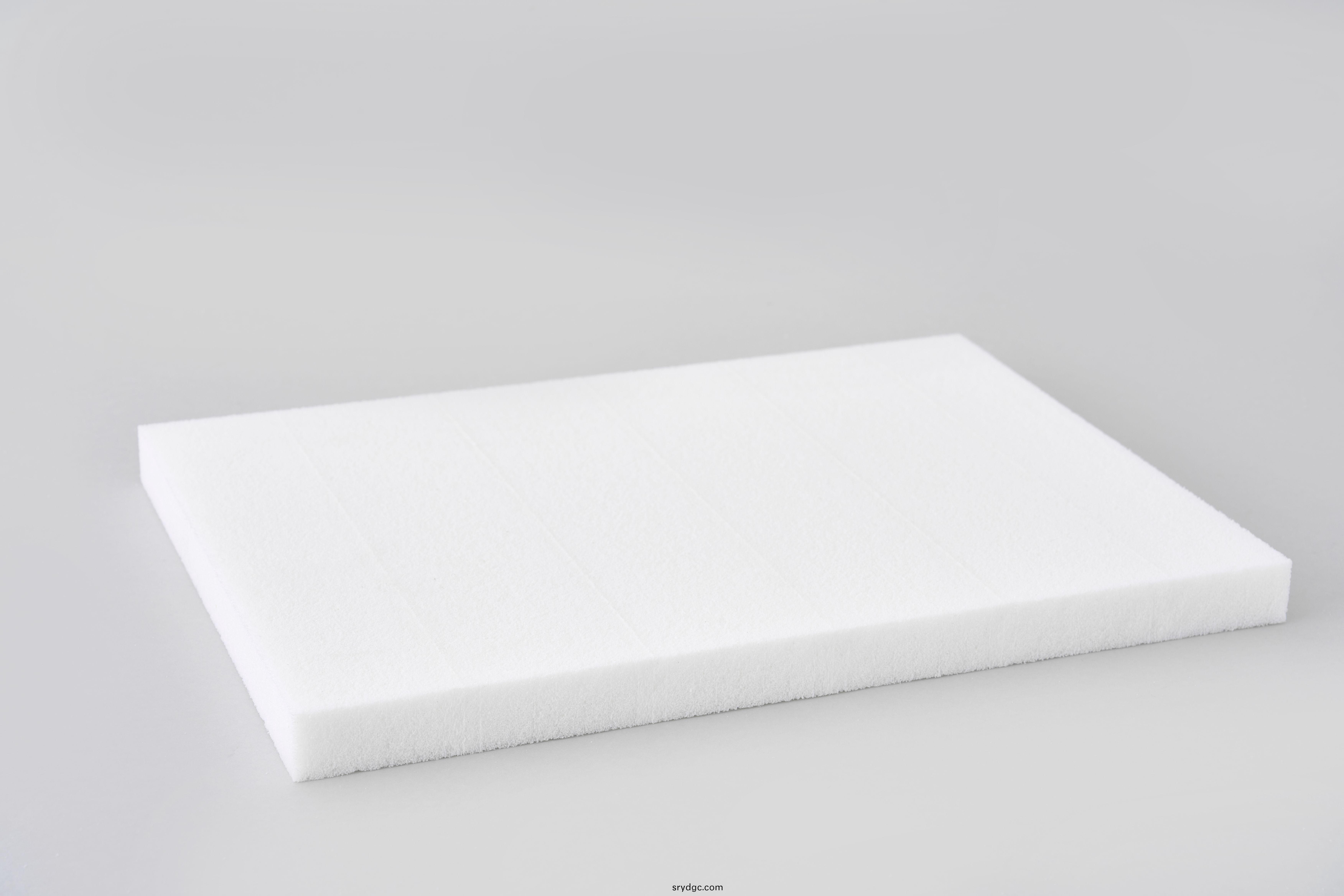

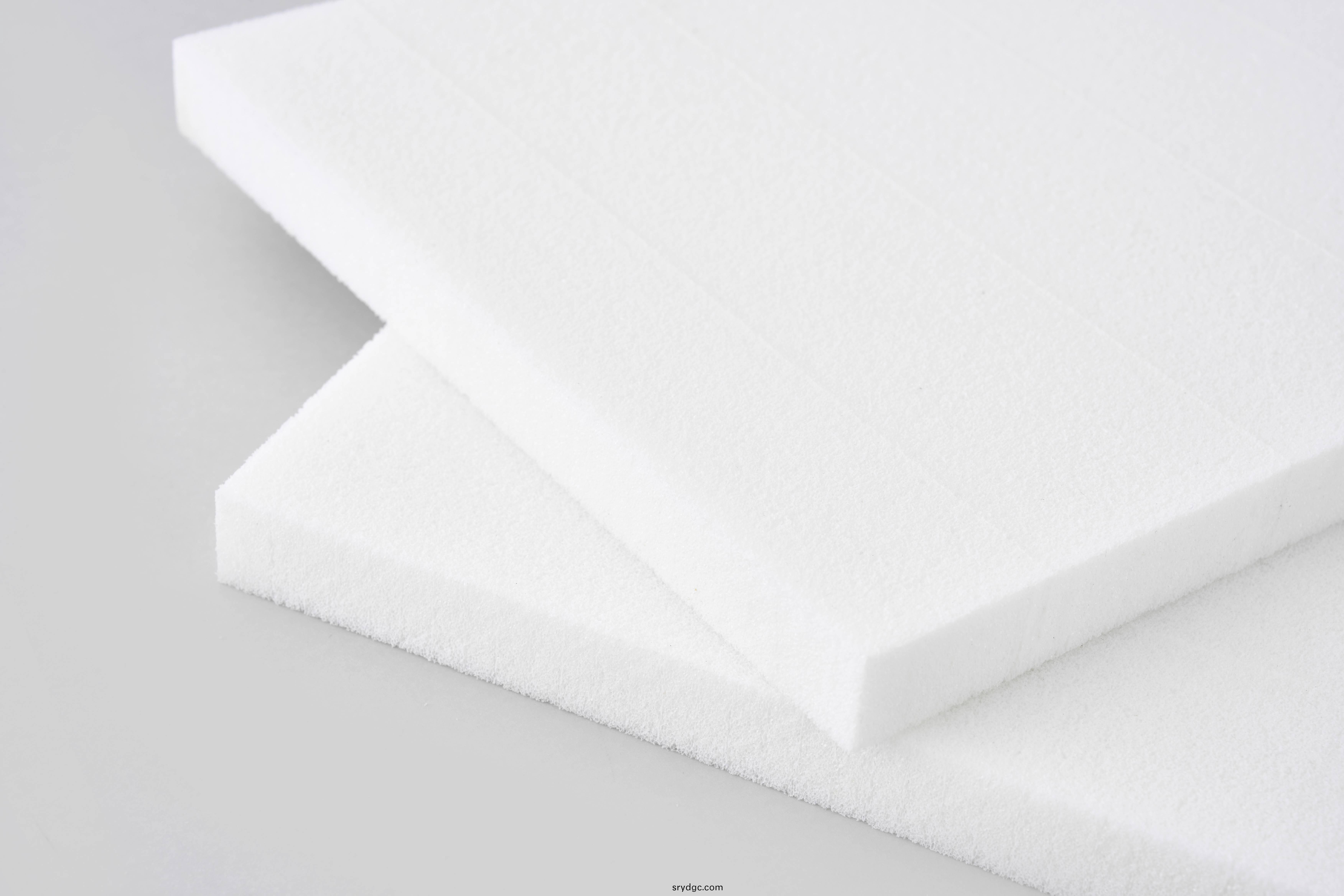

PET

PET foam (polyethylene glycol terephthalate ) is a type of foam with thermoplastic structures, a certain of cutting and compression strength. Hence, it is often used in core materials with sandwich constructions, architecture,road transportation,rail traffic,new energy automobiles,aviation, shipping and wind electricity.
Product properties

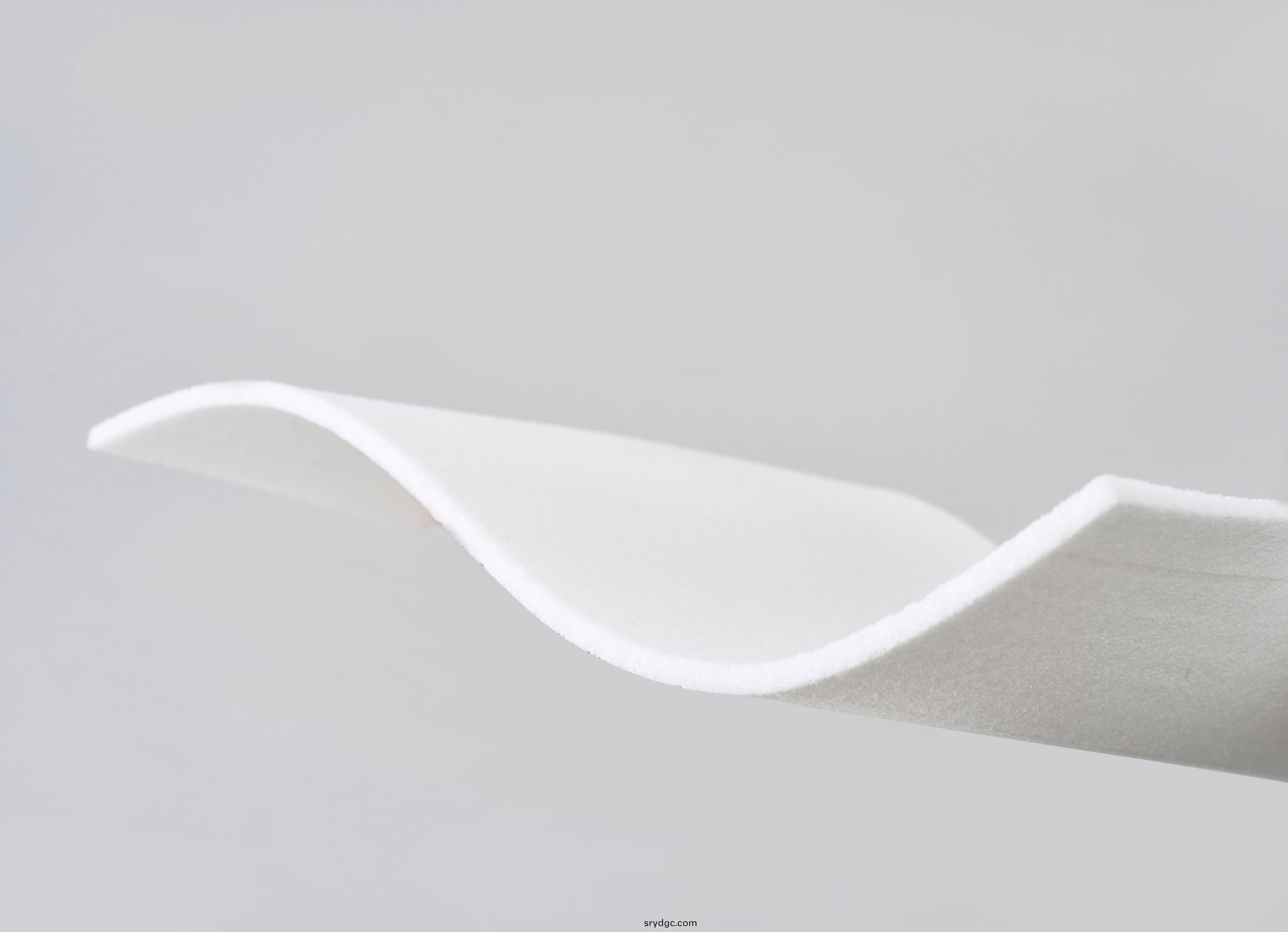

Convenient processing: Thermal forming can forge complicated shapes and structures. Heat stability is still maintained in heating condition.
Favorable mechanical property: excellent cutting and compression performance.
Recyclable: Reused to make new materials
Environmentally-friendly: traditional PET foam utilizes oxide as foaming agent. It may pose some negative influences on the environment and human health. However, our company’s PET foaming technology utilizes carbon dioxide as the physical foaming agent, so it doesn’t discharge greenhouse gases, and good for the environment.
High temperature resistance: it can ensure 150 。C for a short while during process. With service life, it can endure the temperature around 100。C for long periods.

Performance indexes

項目 items

錶觀密度kg/m3

Apparent density

ISO 845

105

115

135

平麵壓縮強(qiang)度

Plane compression strength

N/mm2

ISO 844

1.4

1.8

2.4

平麵壓縮糢量

Plane compression strength modulus

N/mm2

DIN 53421

90

110

140

拉伸強(qiang)度

Tensile strength

N/mm2

ASTM C297

2.3

2.9

3.3

拉伸糢量

Tensile modulus

N/mm2

ASTM C297

110

145

175

剪切強度

Shear strength

N/mm2

ISO 1922

0.9

1.05

1.3

剪切糢量

Shear modulus

N/mm2

ISO 1922

21

23

30

剪切斷裂伸長率%

Shear breaking elongation

ISO 1922

15

15

12

室溫下導(dao)熱率

Thermal conductivity at room temperature

W/m.K

ISO 8301

0.034

0.035

0.036

平闆尺寸

Tablet size

寬/mm

610

1220

100

610

1220

100

610

1220

100


Scope of application

Scope of application

Ship market, rail traffic, new energy automobile, wind electricity market, architecture and decoration ,etc.
